ALICE STAR 58 PLUS

Level of professional
Line:
PROFESSIONAL Line
Category:
Electric
Product type:
Harvesters

Our ALICE STAR electric olive harvester has been designed for the professional use in olive groves. Its performance makes it ideal for intensive harvesting sessions with any type of olive tree. This tool is particularly suitable for harvesting small olives as well as for those which are resistant to the detachment from the branches.

Icona Campagnola peso
Weight
0,935 kg
Icona Campagnola potenza
Power
350 W
Icona Campagnola voltaggio
Battery voltage
12/58 V
Icona Campagnola velocità
Speed
1080 - 1150 - 1180 rpm

Also available in:

Description

Description

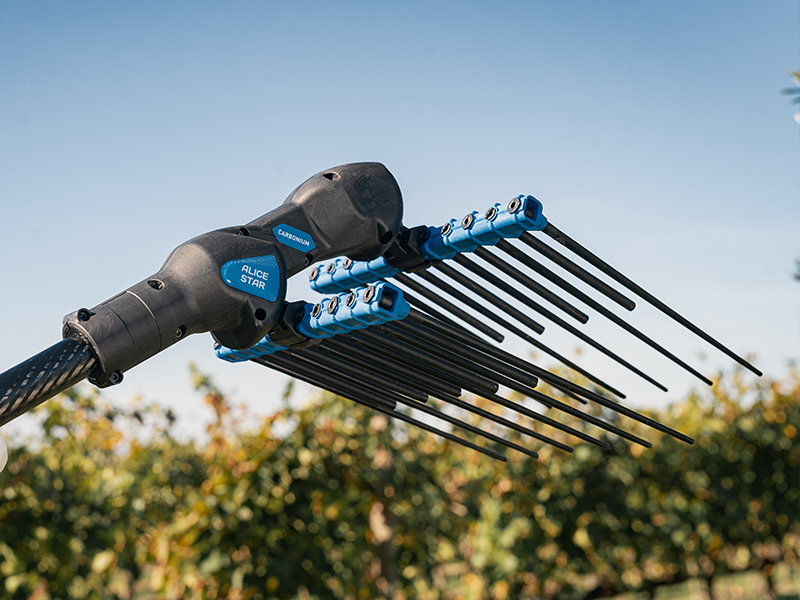

Designed to be a very professional tool for the most demanding olive growers, our ALICE STAR electric olive harvester is equipped with flexible, resistant and interchangeable technopolymer teeth, which move among the branches performing an opposed elliptical movement (Campagnola patent). The excellent penetrability in the foliage is combined with the guarantee of avoiding any damage to the branches during the use of this advanced tool.

The rakes of ALICE STAR can move at three speeds (1080, 1150 or 1180 rpm), which are kept constant by the electronic drive of the motor. POWER 58 PLUS is the unit which powers this olive harvester. It is fitted with a brushless motor, which guarantees a high performance and a low maintenance necessity. Among the pluses of ALICE STAR there is also an electronic power saver, which can be deactivated. It accelerates the speed of the rakes in the work phase and slows it down when the teeth do not touch the branches.

The low weight of the new harvester is perfectly distributed thanks to the position of the motor unit in the lower part of the extension pole, which balances the weight of its harvesting head, ensuring maximum comfort to the users. ALICE STAR can be powered by a Li-Ion 700 lithium-ion backpack battery, a common 80/90 Ah – 12 V car battery or our Energy 4 electric generator.

Technical table
CHARACTERISTICSALICE STAR 58 PLUS
MAXIMUM ENGINE POWER350 W
SPEED1080 - 1150 - 1180 rpm
VOLTAGE12/58 V
POWER CONSUMPTION3/4 Ah (58 V)

Other technical details

Lightness
Flexible prongs
Electronic economizer
Included in the box

ALICE STAR 58 PLUS KIT IS COMPOSED OF:

  • ALICE STAR harvesting head
  • POWER 58 PLUS power unit with brushless motor, power saver and electronic control board
  • 13 m electric cable with DC-DC converter
  • Vest
Advantages
EXCELLENT HARVESTING PERFORMANCE
This electric olive harvester reaches a very high yield with every type of cultivar and farming.
(DISCONNECTABLE) ELECTRONIC POWER SAVER
It automatically slows down the speed of the rakes in the idling phase and accelerates it in the working phase, i.e., when the teeth touch the branches.
ADVANCED TECHNOLOGY
The cover and internal components are made of carbon fiber technopolymer and make the head more resistant and lightweight.
THREE RAKE SPEEDS
The rakes move at 1080, 1150 or 1180 beats per minute. Their speed is kept constant thanks to the electronic drive of the motor, even when the battery voltage decreases.
BALANCED WEIGHT
The tool weight is perfectly distributed thanks to the position of the motor unit in the lower part of the extension pole. This balances the weight of the harvesting head.
THREE POWER SUPPLY POSSIBILITIES
This olive harvester can be powered by a Li-Ion 700 lithium-ion backpack battery, an Energy 4 electric generator or a car battery (80/90 Ah - 12 V).
EXTREMELY LOW MAINTENANCE COSTS
MAINTENANCE-FREE BRUSHLESS MOTOR
FLEXIBLE POWER CABLE
Polyurethane, 13 m long
Products and Accessories

Compatible

POWER 58 PLUS

POWER 58 PLUS is particularly suitable for the olive tree upper parts: in most cases the operator can avoid using the ladder, this way working in full safety.

LI-ION 700

Li-Ion 700 is a lithium-ion battery with electronic drive of its protection and power supply systems. It has an excellent weight-to-autonomy ratio and can operate all the electric harvesters as well as the electric chain pruner Kronos of the Line 58. Li-Ion 700 has no memory effect and is recharged by means of the completely automatic battery charger provided.

ENERGY4

ENERGY4 electric generator is the result of the research by Campagnola in the field of professional electrical systems. Capable of powering up to 4 harvesters at the same time, it is the answer to professional olive growers who want high performance and a long working autonomy during the harvesting operations.
