HERCULES 6 58

Level of professional
Line:
PROFESSIONAL Line
Category:
Electric
Product type:
Harvesters

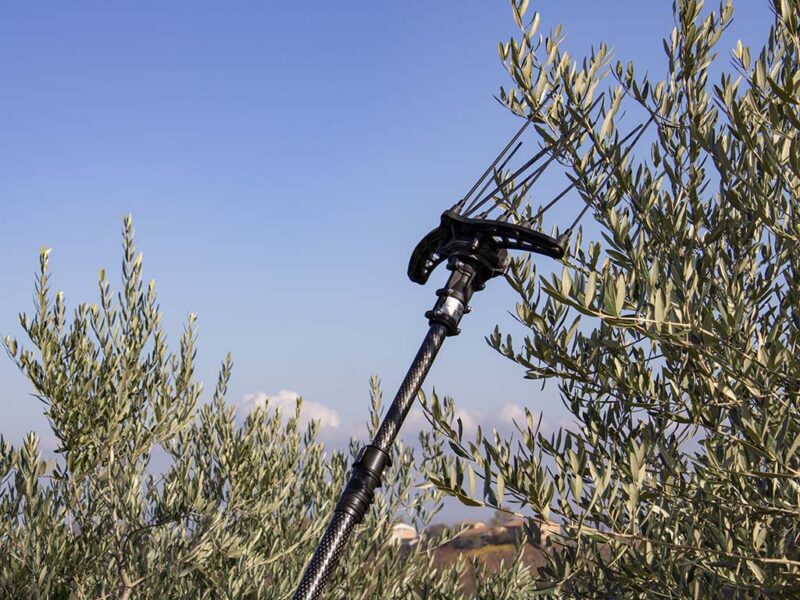

Hercules is a top tool of the Campagnola electric harvesters range thanks to its excellent performance. It is the ideal harvester for a professional use with big and dense-foliage olive-trees.

Icona Campagnola peso
Weight
0,940 kg
Icona Campagnola peso
Tot. Weight
2,118 kg
Icona Campagnola potenza
Power
350 W
Icona Campagnola batteria
Battery
Li-ion
Icona Campagnola voltaggio
Battery voltage
12/58 V
Icona Campagnola velocità
Speed
1080-1150-1180 rpm
Icona Campagnola versioni
Version
HERCULES 6 ECO / HERCULES 6 58
Icona Campagnola movimento
Movement
Elliptical
Icona Campagnola aste compatibili
Compatible rods
Carbon or aluminium, telescopic or fixed extension poles

Also available in:

Technical table
CHARACTERISTICSHERCULES 6 58
SPEED1080-1150-1180 rpm
VOLTAGE12/58 V
POWER CONSUMPTION3/4 Ah (58 V)
WEIGHT* 2,118 kg
*With 170 cm carbon fixed extension pole

Other technical details

Interchangeable technopolymer or carbon highly resistant teeth
Technopolymer structure with carbon fibres
Brushless motor, 58 V–350 W, with electronic drive
Electronic maine board for driving the motor
Speed selector (1080-1150-1180 strokes per minute)
Tearproof handle for the power-supply cable
ON/OFF switch
Carbon or aluminium, telescopic or fixed extension poles, from 45 to 270 cm
Included in the box

THE HERCULES 6 58 KIT IS COMPOSED OF

  • HERCULES harvesting head
  • Power 58 unit with Brushless motor, power saver and electronic driver
  • 13 m electric cable with DC-DC converter
  • Vest
Advantages
ELECTRONIC (DISCONNECTABLE) POWER SAVER
It automatically slows down or increases the rakes speed according to the idling or working phase (as soon as the teeth touch the branches)
THREE CONSTANT RAKE SPEEDS
1080-1150-1180 strokes per minute constant rate, thanks to the electronic drive of the motor, even when the battery voltage decreases
TRIPLE POWER-SUPPLY POSSIBILITY
By means of a backpack lithium battery, a electric generator or a car lead battery (80/90 Ah–12 V) for Hercules 58, by means of a electric generator or a car lead battery (80/90 Ah–12 V) for Hercules Eco
FLEXIBLE POWER-SUPPLY CABLE
Made of polyurethane, 13 m
LONG INTERCHANGEABLE CARBON TEETH
They allow an excellent penetration among the branches
LOW WEIGHT
The harvesting head weighs only 0.948 kg
GREAT HARVESTING CAPACITY
Excellent performance in all harvesting conditions, also with big-seized or dense-foliage trees
LOW MAINTENANCE COSTS
BRUSHLESS MOTOR WITHOUT ANY NEED FOR MAINTENANCE
Products and Accessories

Compatible

LI-ION 700

Li-Ion 700 is a lithium-ion battery with electronic drive of its protection and power supply systems. It has an excellent weight-to-autonomy ratio and can operate all the electric harvesters as well as the electric chain pruner Kronos of the Line 58. Li-Ion 700 has no memory effect and is recharged by means of the completely automatic battery charger provided.

ENERGY4

ENERGY4 electric generator is the result of the research by Campagnola in the field of professional electrical systems. Capable of powering up to 4 harvesters at the same time, it is the answer to professional olive growers who want high performance and a long working autonomy during the harvesting operations.
