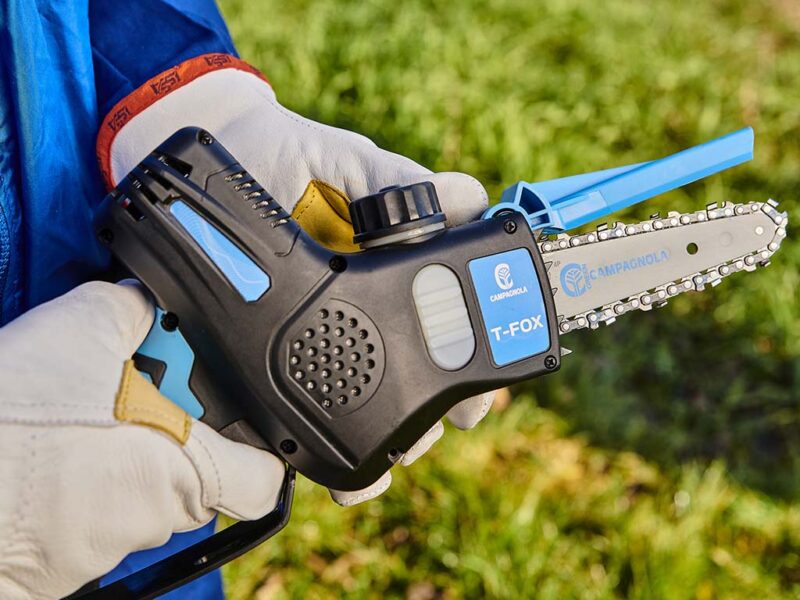

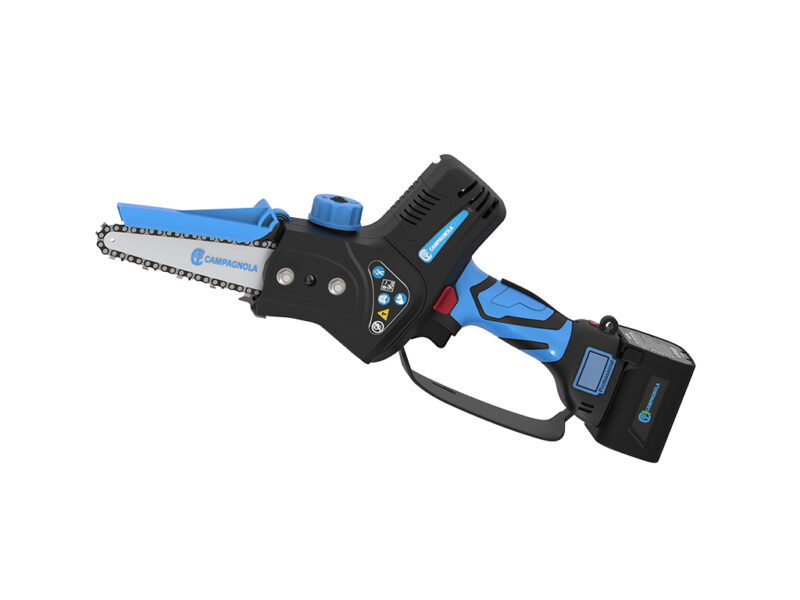

T-FOX Campagnola
T-fox Potatore elettrico con batteria plug-in
T-FOX Campagnola
T-fox Potatore elettrico con batteria plug-in
T-fox Potatore elettrico con batteria plug-in
T-fox Potatore elettrico con batteria plug-in
Click to enlarge
Watch the product presentation Ask info Accessories compatible
360 product view
Back

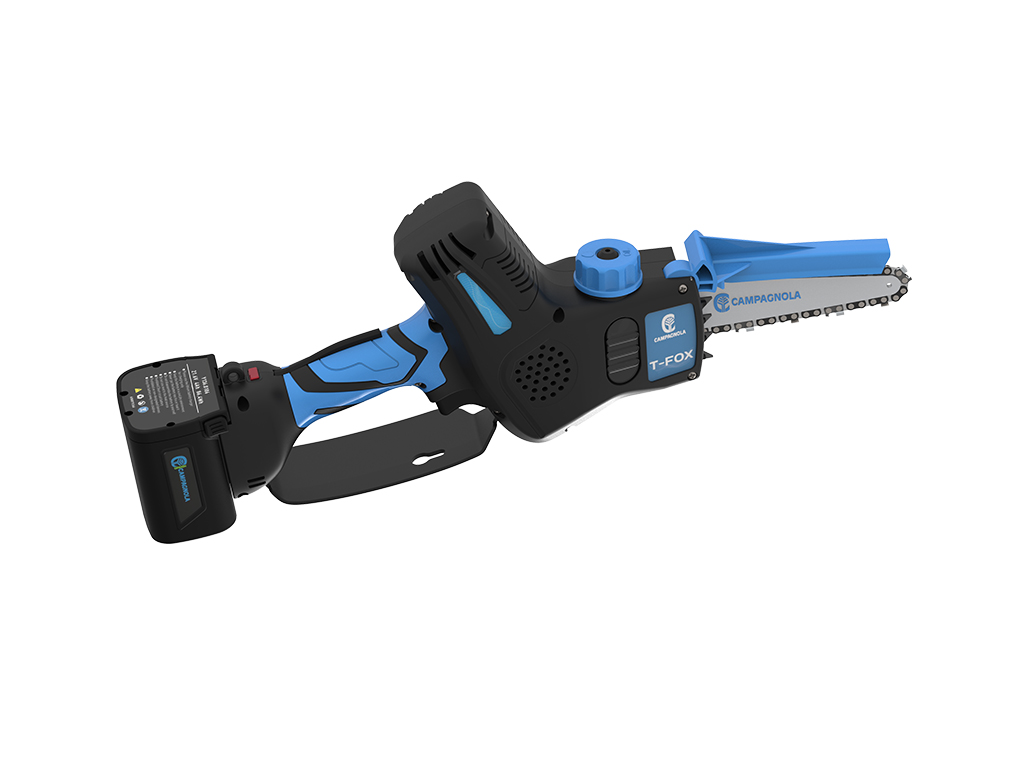

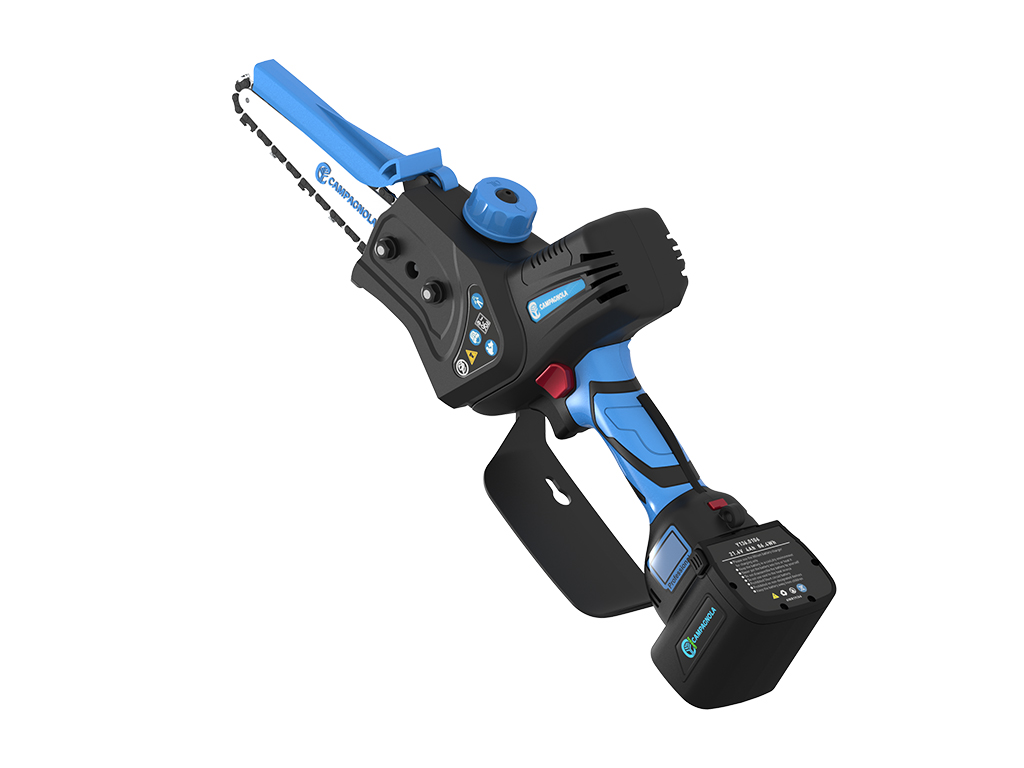

T-FOX

Level of professional
Line:
GREEN Line
Category:
LINE 24 plug-in
Product type:
Electric pruners with plug-in battery

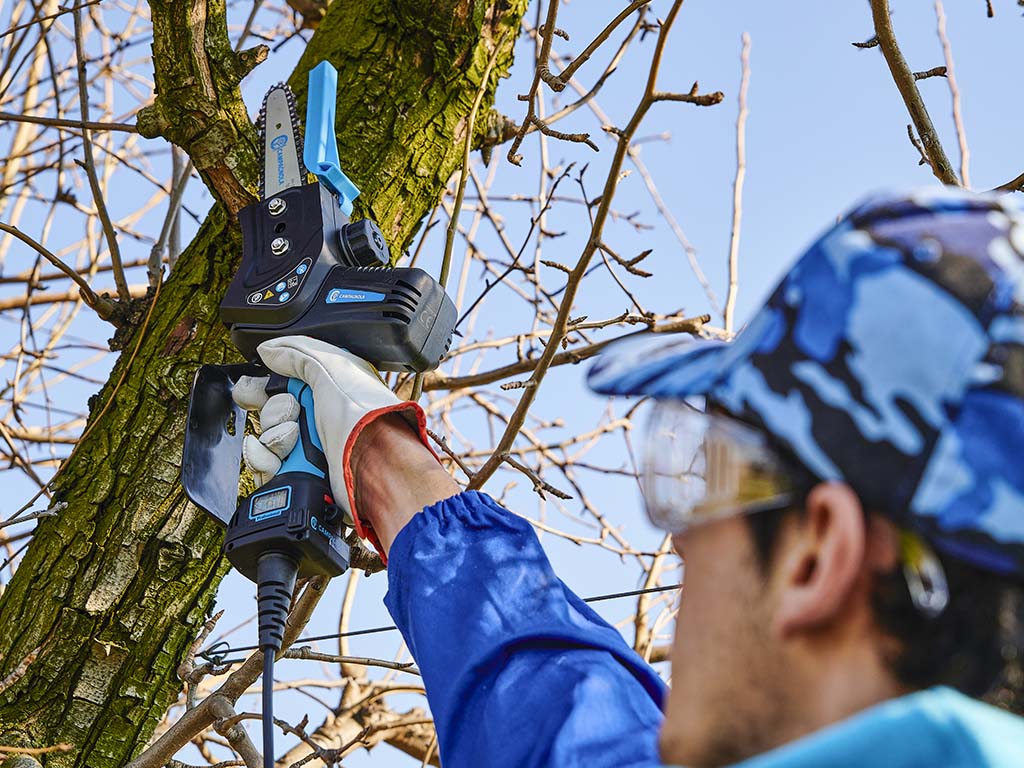

Power in your hands. T-FOX electric chain pruner has small dimensions, but its cutting speed is high. It is the ideal tool for cutting orchards and ornamental plants.

Icona Campagnola batterie comprese
Batteries included
2 Lithium batteries
Icona Campagnola peso
Weight
1,280 kg
Icona Campagnola velocità catena
Chain speed
11 m/sec
Icona Campagnola diametro taglio
Cutting Ø
10 cm
Icona Campagnola barra
Bar
4,5''
Icona Campagnola catena
Chain
1/4'' - 38 links
Icona Campagnola peso con batteria
Weight with battery
1,750 kg
Icona Campagnola potenza
Power
21,6 V / (25,2 V MAX)
Icona Campagnola batteria
Battery
Li-Ion plug-in
Icona Campagnola colture
Crops
Orchards and ornamental plants
Icona Campagnola tagli
Cuts
140
Icona Campagnola tempo di ricarica
Charging time
3 h x battery
Technical table
CHARACTERISTICST-FOX
CUTTING Ø*10 cm
BATTERYLi-Ion plug-in
RATED VOLTAGE21,6 V / (25,2 V MAX)
CAPACITY4,2 Ah
CUT QUANTITY (Ø 8 CM)Battery 4,2 Ah: 140 cuts
RECHARGE TIME3 h x battery
POWER450 W
CHAIN1/4’’ - 38 links
CHAIN SPEED11 m/sec
BAR4,5’’
WEIGHT WITH BATTERY1,750 kg
WEIGHT W/O BATTERY1,280 kg
*According to the wood type

Other technical details

Safety protection against kickback
Oil reservoir with automatic lubrication
450 W brushless motor
Non-slip handle with safety switch
Plug-in battery: 3 batteries supplied
Multipurpose LCD display
Trigger, variable speed
Included in the box

THE T-FOX KIT IS COMPOSED OF

  • Pruner
  • 2 x 4.2 Ah Lithium batteries
  • Battery charger with triple output
  • Carrying case
  • Tool kit
  • Bar cover
Advantages
EASY USE
The low weight and the plug-in battery guarantee the operator’s movement freedom
POWERFUL

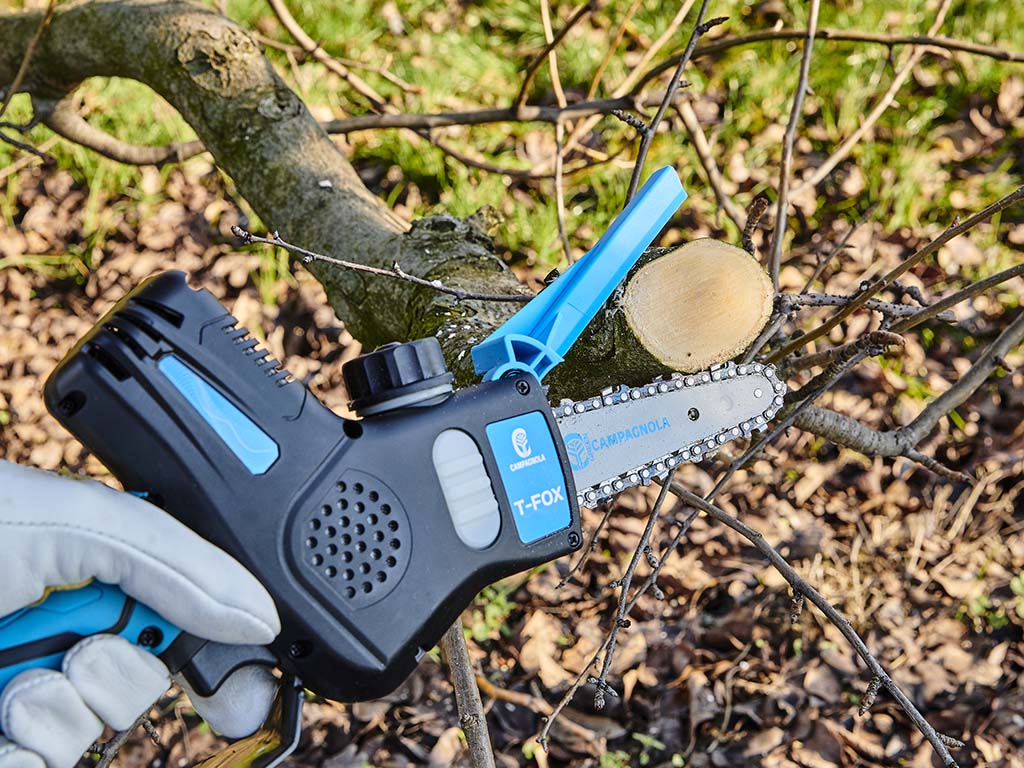

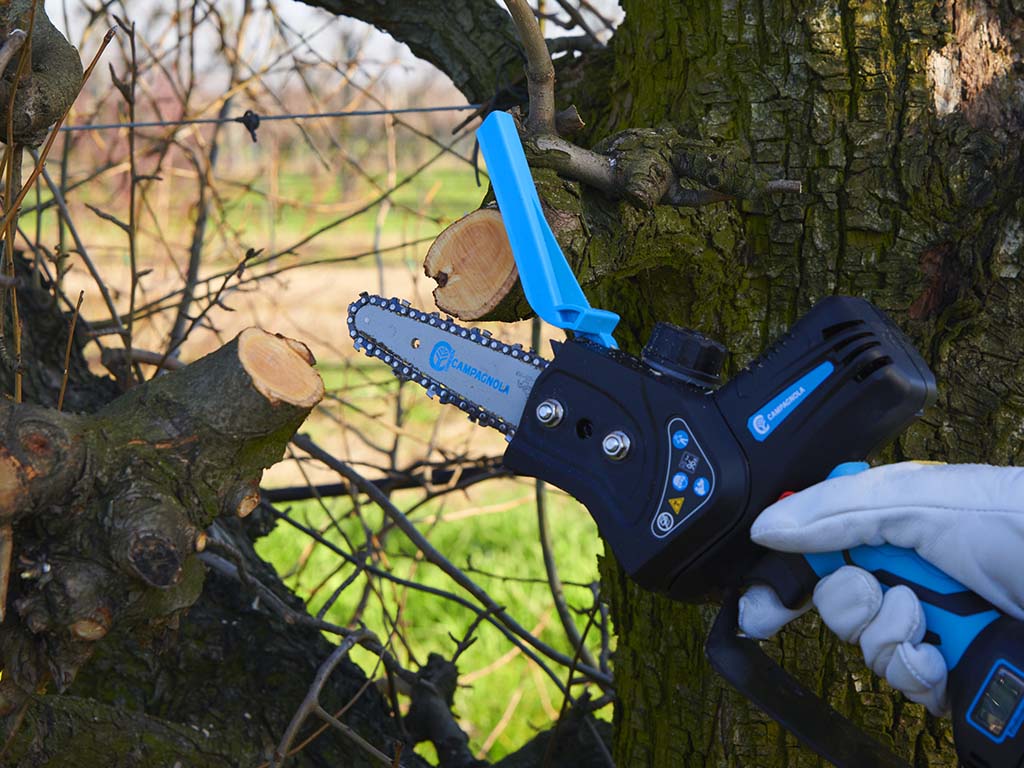

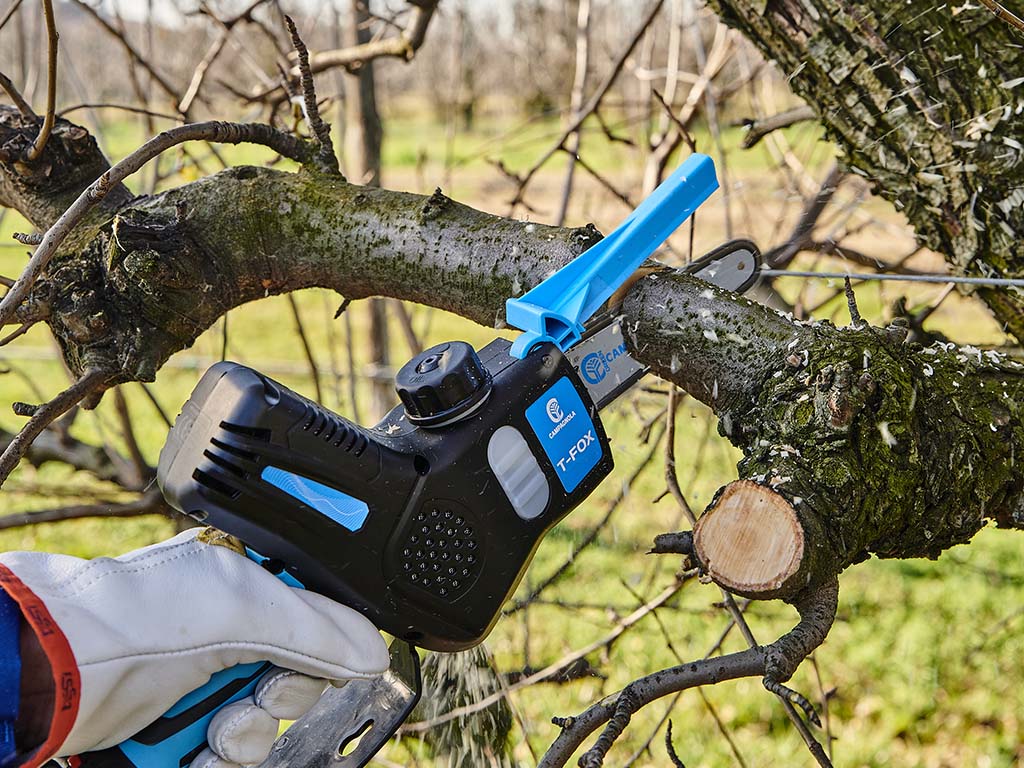

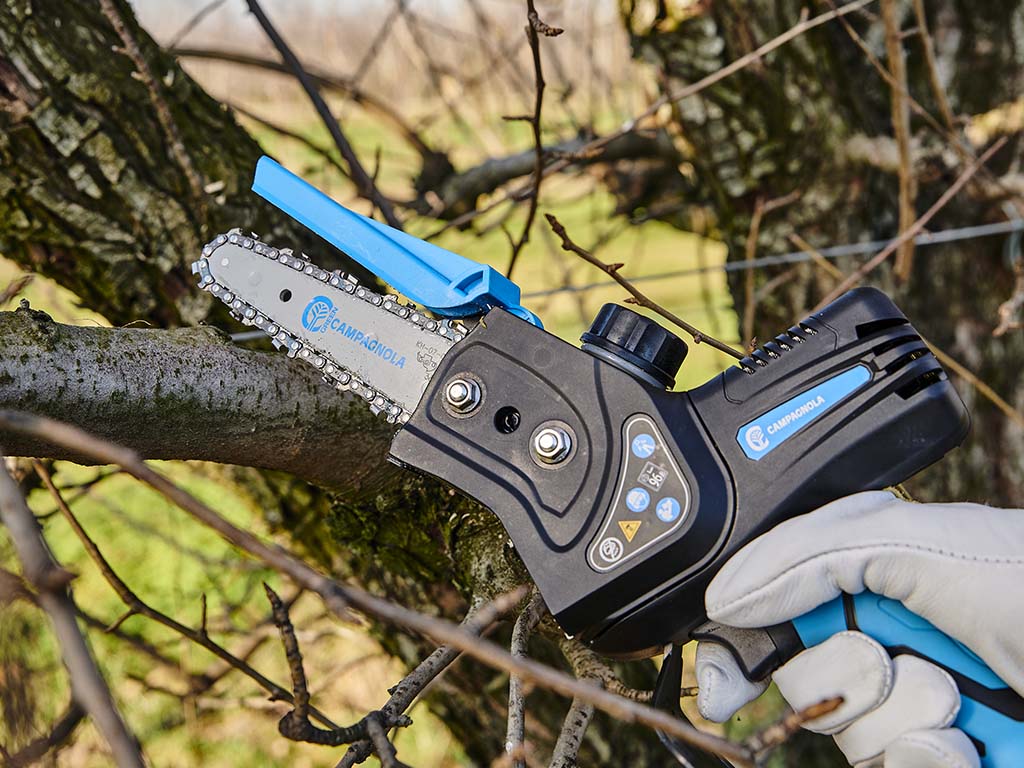

It carries out quick and precise cuts up to 10 cm diameter
DOUBLE POWER-SUPPLY MODE

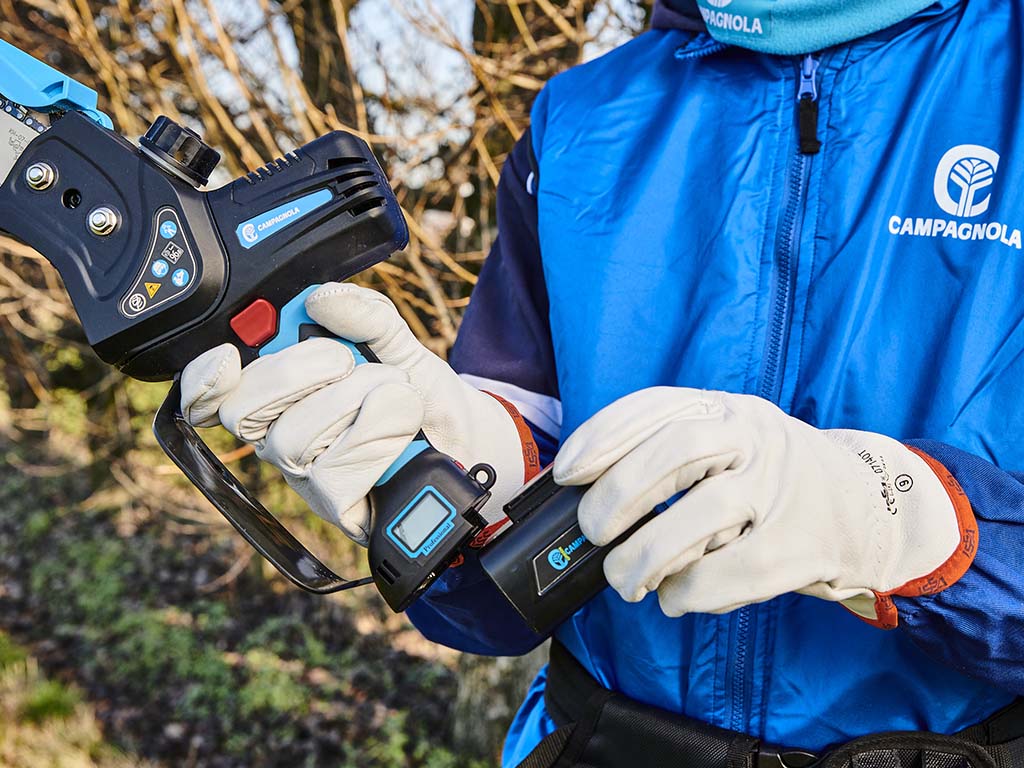

Double use possibility: it can be used either with plugged-in battery or with cable (patented of Campagnola) and belt battery
EXCELLENT PERFORMANCE
The manual lubricating device guarantees the adequate smoothness of the chain movement
MULTIPURPOSE LCD DISPLAY
It shows the battery charge percentage and the amount of the hours worked
