T-CAT M

Level of professional
Line:
GREEN Line
Category:
LINE 24 plug-in
Product type:
Electric pruners with plug-in battery

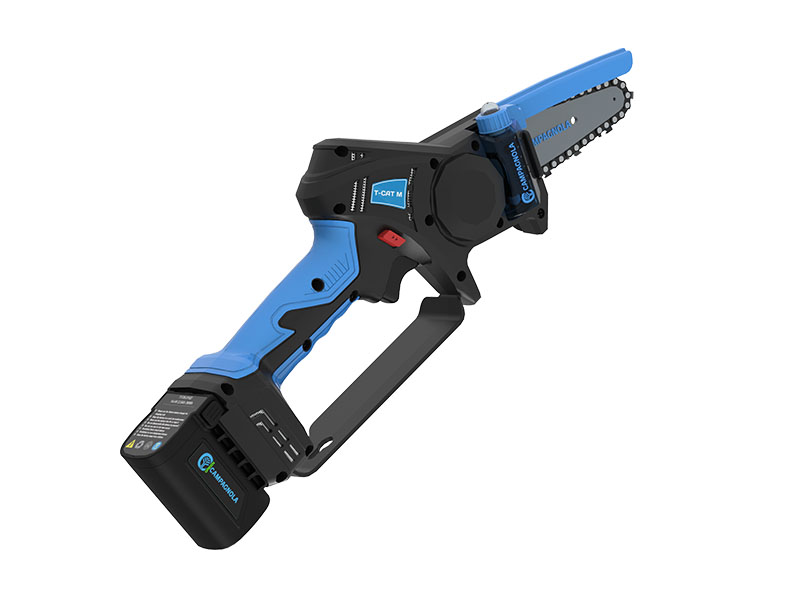

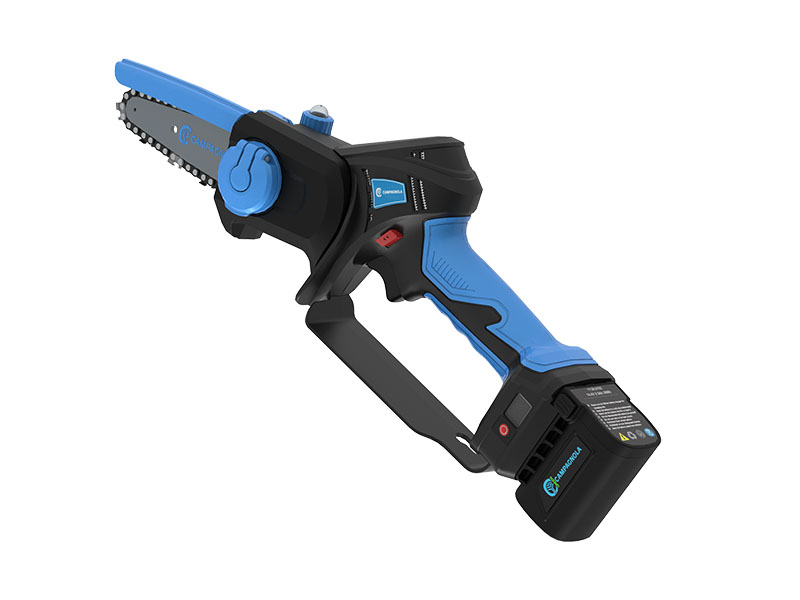

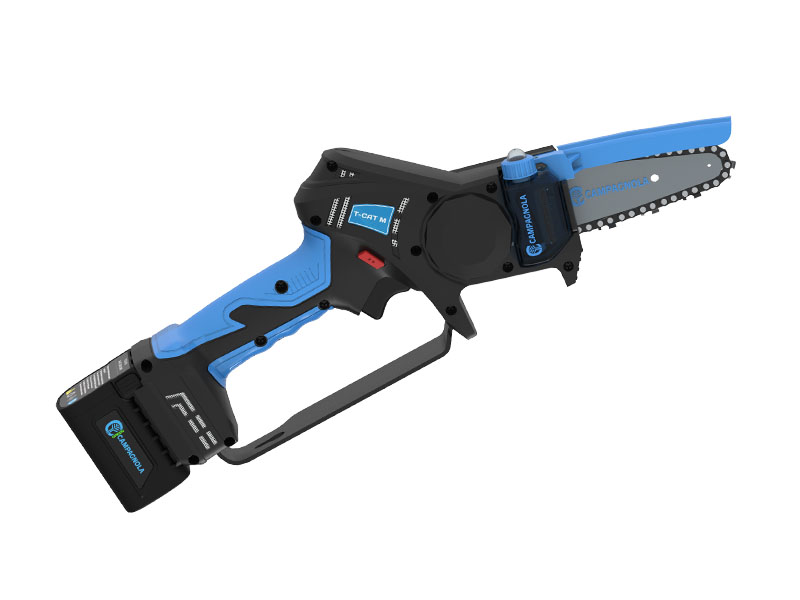

Our innovative T-CAT M chain pruner is a perfect mix of cutting precision and effectiveness and is proposed as a small indispensable tool for the users who, in their pruning work, need a handy and compact ally, to support them, when cutting shrubs, branches or bushes. Extremely lightweight, it can be carried in its special belt holster

Icona Campagnola batterie comprese
Batteries included
2 x 2.5 Ah Lithium batteres
Icona Campagnola peso
Weight
0,956 kg
Icona Campagnola velocità catena
Chain speed
7,5 m/sec
Icona Campagnola diametro taglio
Cutting Ø
8 cm
Icona Campagnola barra
Bar
4''
Icona Campagnola catena
Chain
1/4'' - 29 links
Icona Campagnola peso con batteria
Weight with battery
1,200 kg
Icona Campagnola potenza
Power
500 W
Icona Campagnola batteria
Battery
Li-ion plug-in
Icona Campagnola tagli
Cuts
90
Icona Campagnola tempo di ricarica
Charging time
1,5/2 h x battery

Also available in:

Description

Description

The T-CAT M chain pruner has been designed to ensure its users good cutting performance, while maintaining minimum dimensions and excellent compactness. Perfect for the care of domestic greenery and for hobby purposes, T-CAT M is very useful also for small finishing pruning interventions in professional contexts.

Can cut branches with a maximum diameter of 8 cm, without producing any burrs and slowing down. Its weight is only 1.200 kg, including the lithium-ion plug-in battery with a rated voltage of 14.4 V (16.8 V max) and a capacity of 2.5 Ah. The autonomy of each recharge allows the operator to perform up to 90 cuts of branches with a maximum diameter of 6 cm.

To support the performance of T-CAT M there are a 500 W brushless motor with a 1/4 ” chain, fitted with 29 links that can reach a speed of 7.5 m / sec. To complete the features of this chain pruner of the GREEN Line there are also its non-slip handle with safety switch and its ergonomic design, which ensure the operator exceptional freedom of movement and minimal arm fatigue.

Technical table
CHARACTERISTICST-CAT M
CUTTING Ø*8 cm
BATTERYLi-Ion plug-in
RATED VOLTAGE14,4 V / (16,8 V MAX)
CAPACITY2,5 Ah
CUT QUANTITY (Ø 6 CM)Batteria 2,5 Ah: about 90 cuts
RECHARGE TIMEBattery 2,5 Ah: 1,5/2 h
POWER500 W
CHAIN1/4’’ - 29 teeth
CHAIN SPEED7,5 m/sec
BAR4’’
WEIGHT1,200 kg
WEIGHT W/O BATTERY0,956 kg
*According to the wood type

Other technical details

ON/OFF button
LCD display
Non-slip handle with safety switch
500 W brushless motor
Safety protection against kickback
4’’ bar – ¼’’ chain
Oil reservoir with manual lubricator
Trigger, variable speed
Plug-in battery: 2 batteries supplied
Included in the box

OUR T-CAT M KIT IS COMPOSED OF

  • Pruner
  • 2 x 2.5 Ah Lithium batteres
  • Battery charger with triple output

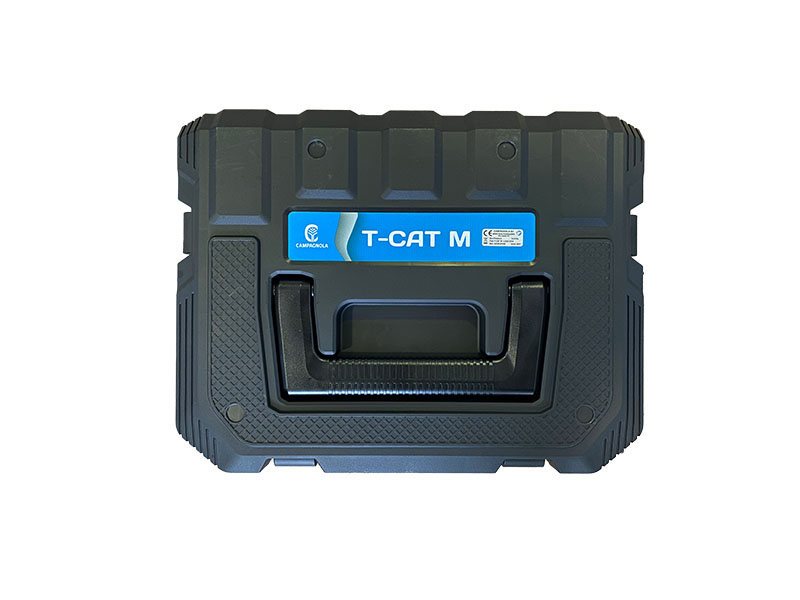

  • Carrying case
  • Tool kit
  • Bar cover
Advantages
LIGHTWEIGHT
Thanks to its weight of only 1200 g it can be carried in a special belt holster
HANDY
Its balanced weight and small dimensions give extreme handiness and ease of use as a result
RELIABLE
The brushless motor, which is not subject to wear, guarantees the tool long lifespan
MULTIPURPOSE LCD DISPLAY
It allows to check the battery charge percentage, the hours of work and the tool condition
Products and Accessories

Compatible

BATTERY 14,4 V - 2,5 Ah

Battery for STARK XM, NEXI, T-CAT M V1 and STARBERRY MD2 - 14.4 V / 16.8 V max - 2.5 Ah

CABLE AND HOLSTER FOR BELT BATTERY

The cable for the tools of the GREEN Line allows the operators to remove their plugged-in battery and to put it into the special belt holster. This further decreases the tool weight. It is a patent of Campagnola. The unit cannot be used with SPEEDY.

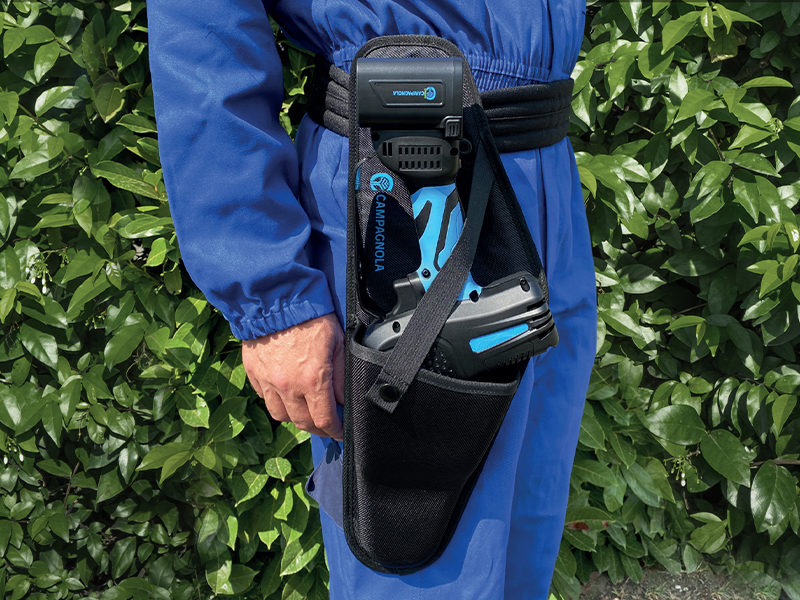

HOLSTER FOR CHAIN PRUNER

Thanks to the holster you can carry T-CAT M, T-REX or T-FOX chain pruner hanging from to the belt. The rigid holster protects the bar.
