NEXI

Level of professional
Line:
GREEN Line
Category:
LINE 24 plug-in
Product type:
Electric tying tool with plug-in battery

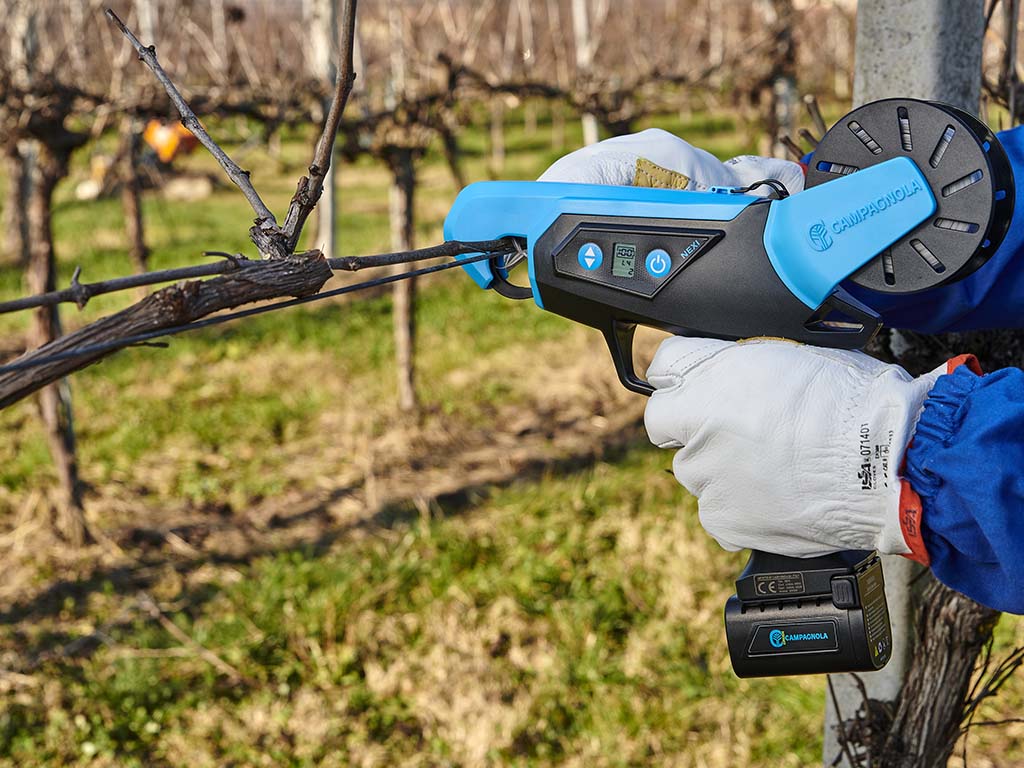

The NEXI tying tool is a highly technological product, which guarantees quick and precise tying operations in vineyard. The plugged-in battery allows the operator to make totally free movements in any conditions of use.

Icona Campagnola batterie comprese
Batteries included
2 Lithium batteries
Icona Campagnola peso
Weight
0,766 kg
Icona Campagnola peso con batteria
Weight with battery
1,010 kg
Icona Campagnola potenza
Power
14,4 V / (16,8 V MAX)
Icona Campagnola batteria
Battery
Li-Ion plug-in
Icona Campagnola colture
Crops
Vineyard
Icona Campagnola legature per batteria
Battery ligatures
Over 10.000
Icona Campagnola tempo di ricarica
Charging time
1,5/2 h x battery
Technical table
CHARACTERISTICSNEXI
Ø MAX. TYING25 mm
BATTERYLi-Ion plug-in
RATED VOLTAGE14,4 V / (16,8 V MAX)
CAPACITY2,5 Ah
TIE TWISTS: 6 MODESL1: 3 twists
L2: 4 twists
L3: 5 twists
L4: 6 twists
L5: 7 twists
L6: 8 twists
TYING OPERATIONS QUANTITY PER BATTERYOver 10.000 tying operations
TYING OPERATIONS QUANTITY PER MINUTE80 tying operations
RECHARGE TIME1,5/2 h x battery
WEIGHT WITH BATTERY1,010 kg
WEIGHT WITHOUT BATTERY0,766 kg

Other technical details

Removable kinematics protection
110 m or 130 m twist tie reel
Hole for belt hook
Ergonomic handle
Plug-in battery: 2 batteries supplied
Operating trigger
ON/OFF push button, adjusting push button to select the tying modes and display to visualize the functions
Included in the box

THE NEXI KIT IS COMPOSED OF

  • Tying tool
  • 2 x 2.5 Ah Lithium battery
  • Battery charger with triple output
  • Carrying case
  • 2 standard twist tie reels
  • Tool kit
Advantages
MAXI REEL
110 m of standard or biophotodegradable twist tie or 130 m of paper twist tie
EFFECTIVE
It is lightweight thanks to the reel dimensions and allows to carry out up to 810 tying operations with one reel of standard or bio-photodegradable twist tie or 960 with one reel of paper twist tie
MULTIPURPOSE
The 6 tying modes are easily selectable and permit various uses
QUICK
It carries out up to 80 tying operations per minute
DOUBLE POWER-SUPPLY MODE
Double use possibility: it can be used either with plugged-in battery or with cable (patented of Campagnola) and belt battery. In this latter case the tying tool weight is only 766 gr
