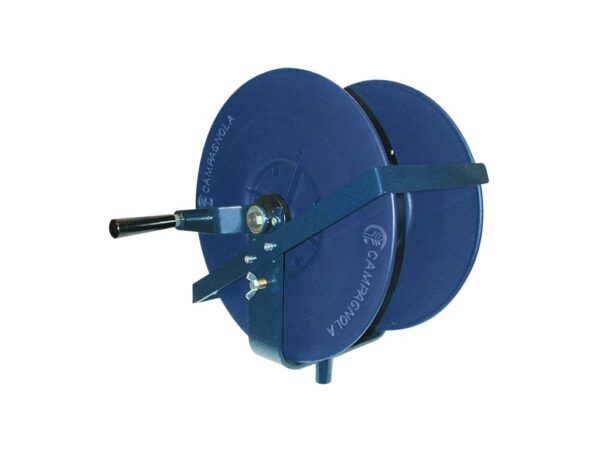

REEL C/200

Ask info

360 product view

ECOPLUS

Level of professional

Line:

PROFESSIONAL Line

Category:

Pneumatic

Product type:

PTO compressors

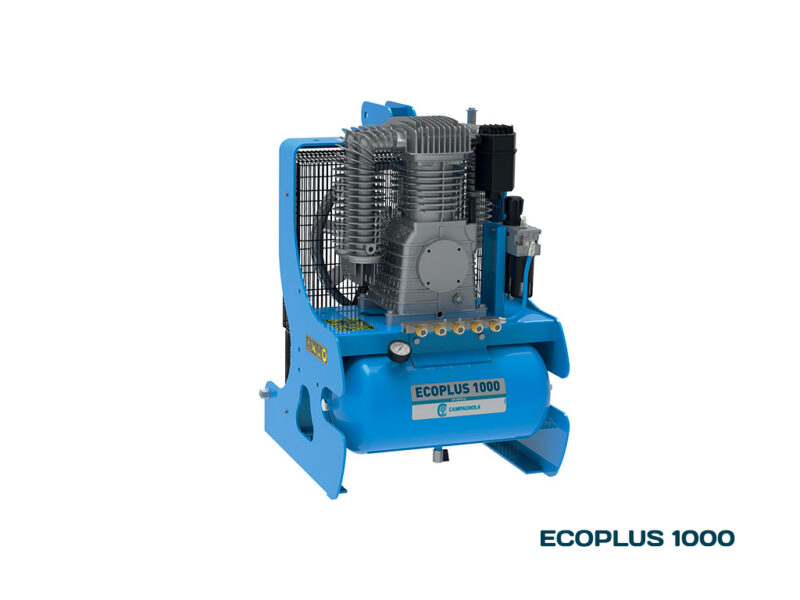

The ECOPLUS models are featured by sober and essential lines and top quality components. They are compact, powerful and reliable. ECOPLUS 1500 and ECOPLUS 1700 TANDEM are the top models of the range. Designed for a highly professional use, they are fitted with a double filter/lubricator/regulator unit and a double air tank. In order to avoid any head block overheating, ECOPLUS 1500 is cooled by means of a fan, while ECOPLUS 1700 TANDEM, unique in its genre, is fitted with two head blocks. The product range extends with the introduction of the Ecoplus 1000 model.

Weight

89,65 a 211 kg

Pressure

9/11 bar max

Intake air

554 to 1640 l/min

Size

56 x 64 x 86 cm a 79 x 98 x 86 cm

Power

18 a 40 hp

Tank capacity

25 to 2x20 l

Amount of plug-in scissors

5 a 15

Amount of plug-in harvesters

2 a 8

Amount of plug-in pruners

1 a 3

Technical table
Included in the box
Documents

Technical table

CHARACTERISTICS	ECOPLUS 520	ECOPLUS 950	ECOPLUS 1000	ECOPLUS 1500	ECOPLUS 1700 TANDEM
RECOMMENDED MINIMUM TRACTOR POWER	18 hp	20 hp	20 hp	25 hp	40 hp
AIR DISPLACEMENT	554 l/min	820 l/min	1018 l/min	1500 l/min	1640 l/min
CYLINDERS QUANTITY	2	2	2	2	2
STAGES QUANTITY	1	2	2	2	2
AIR TANK CAPACITY	25 l	25 l	25 l	2x20 l	2x20 l
MAXIMUM TANK WORKING PRESSURE	9/11 bar max	9/11 bar max	9/11 bar max	9/11 bar max	9/11 bar max
DIMENSIONS	56 x 64 x 86 cm	56 x 64 x 86 cm	56 x 64 x 86 cm	61,5 x 75 x 106,5 cm	79 x 98 x 86 cm
TOTAL WEIGHT	89,65 kg	104,1 kg	113 kg	182,9 kg	211 kg
